A182 F304 SS WELD NECK FLANGE, 150LB, 24 INCH

Name: 150LB Stainless Steel Weld Neck Flange.
Type: Weld Neck Flange.
Materials: ASTM A182, Stainless Steel.
Grades: F304, F304L.
Standards: JIS B2220, HG 20595, SABS 1123.
Pressure: 150LB (PN20).
Size: 24 Inch.

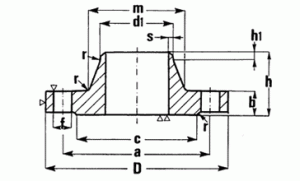

a182-f304-ss-weld-neck-flange-150lb-24-inch-pic

Directions for the designation d1 a b D f h h1 m r s Holes Screws Weight*
Rated
Diameter
External diameter
of the pipe
Kg
15 20 21 55 12 80 11 30 6 28 4 2,5 4 M 10 0,45
21,3 22,5 30 0,45
20 25 26 65 14 90 11 32 6 35 4 2,5 4 M 10 0,66
26,9 28 38 0,66
25 30 31 75 14 100 11 35 6 40 4 2,8 4 M 10 0,83
33,7 34,5 42 0,82
32 38 39 90 14 120 14 35 6 50 6 3 4 M 12 1,18
42,4 43,5 55 1,16
40 44,5 45,5 100 14 130 14 38 7 58 6 3 4 M 12 1,40
48,3 49,5 62 1,38
50 57 58 110 14 140 14 38 8 70 6 3,5 4 M 12 1,58
60,3 61,5 74 1,56
65 76,1 77 130 14 160 14 38 9 88 6 3,5 4 M 12 1,95
80 88,9 90 150 16 190 18 42 10 102 8 3,7 4 M 16 3,07
100 108 109 170 16 210 18 45 10 122 8 3,7 4** M 16 3,68
114,3 115,5 130 3,56
125 133 134 200 18 240 18 48 10 148 8 4 8 M 16 5,04
139,7 141 155 4,80
150 159 161 225 18 265 18 48 12 172 10 5 8 M 16 5,75
168,3 170,5 184 5,52
175 193,7 195,5 255 20 295 18 52 12 208 10 5 8 M 16 7,22
200 219,1 221 280 20 320 18 55 15 236 10 5 8 M 16 8,16
250 267 269 335 22 375 18 60 15 282 12 5,5 12 M 16 11,4
273 275 290 11,1
300 323,9 326 395 22 440 22 62 15 342 12 6 12 M 20 14,8
350 355,6 357,5 445 22 490 22 62 15 385 12 6,5 12 M 20 19,5
368 370 17,7
400 406,4 408,5 495 22 540 22 65 15 438 12 7 16 M 20 22,5
419 421 20,3
450 457,2 459 550 22 595 22 65 15 476 12 7,3 16 M 20 25,0
500 508 510 600 24 645 22 68 15 538 12 7,3 20 M 20 30,4
600 609,6 611,5 705 24 755 25 70 16 640 12 7,3 20 M 22 38,0
700 711,2 715 810 24 860 25 70 16 740 12 9 24 M 22 45,9
800 812,8 817 920 24 975 30 70 16 842 12 9 24 M 27 55,0
900 914,4 918 1020 26 1075 30 70 16 942 12 9 24 M 27 64,7
1000 1016 1020 1120 26 1175 30 70 16 1045 16 9 28 M 27 70,6
1200 1220 1224 1340 28 1405 33 90 20 1248 16 9 32 M 30 108
1400 1420 1424 1560 32 1630 36 90 20 1452 16 9 36 M 33 153
1600 1620 1624 1760 34 1830 36 90 20 1655 16 11 40 M 33 189
1800 1820 1824 1970 36 2045 39 100 20 1855 16 11 44 M 36 x 3 239
2000 2020 2024 2180 38 2265 42 110 25 2058 16 12 48 M 39 x 3 308
*
 The weight is approximate and calculated on base 7.85 Kg/dm3
**
 For oil piping the flange should have 8 holes
